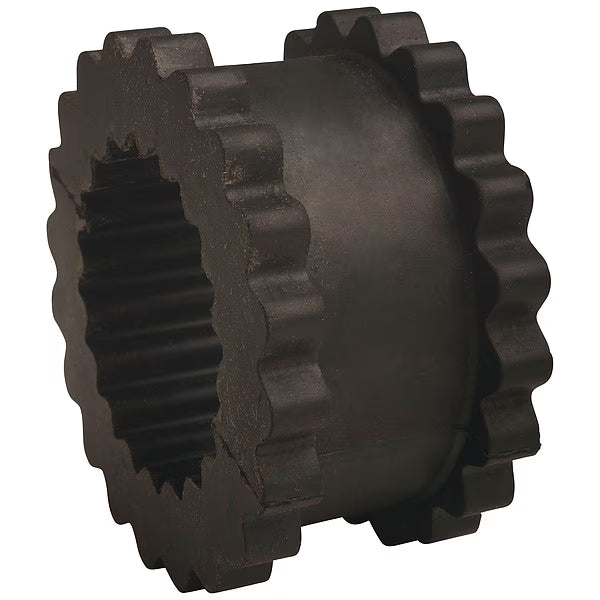

Sleeve Coupling Insert, Coupling Size 6, Maximum Speed 6,000 RPM, Maximum Torque 585 in-lb, Outside Diameter 3 3/4 in, Insert Construction - New 1-Piece Solid, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 0.93 hp, Insert Material EPDM, Insert Width 1 7/8 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Torsional Stiffness 1,718 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 275 Degrees F
| Size - Sleeve Couplings |
6 |
| Outside Dia. |
3.75 in |
| Width |
1.88 in |
| Coupling Size |
6 |
| Insert Width |
1 7/8 in |
| Outside Diameter |
3 3/4 in |
| Flange Type - Sleeve Couplings |
JE |
| Insert Design - Couplings |
One-Piece Solid |
| Material - Inserts |
EPDM Rubber |
| Rated Torque |
585 in-lb |
| Max. RPM |
6,000 RPM |
| HP Rating @ 100 RPM |
0.93 hp |
| Item |
Sleeve Coupling Insert |
| Body Style |
6JE |
| HP Rating @ 3600 RPM |
33.42 hp |
| Application |

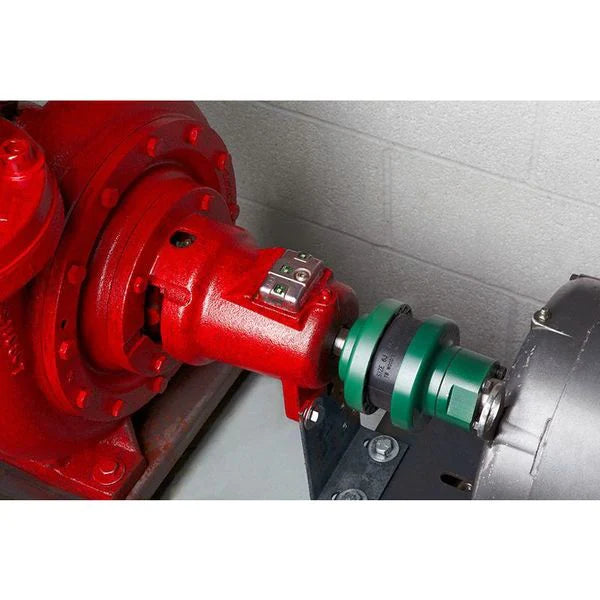

Blowers, Compressors, Conveyors, Mixers, Motors, Pumps |
| Insert Material |
EPDM |
| Item - Sleeve Coupling Inserts |
Sleeve Coupling Insert |
| HP Rating @ 1800 RPM |
16.71 hp |
| Operating Temp. |
-30 Degrees to 275 Degrees F |
| HP Rating @ 1200 RPM |
11.14 hp |
| Insert Design |
One-Piece Solid |
| Features |
4-Way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration |
| Maximum Operating Temperature |
275 Degrees F |
| Weight |
0.4 lb |
| Maximum Torque |
585 in-lb |
| Parallel Misalignment |
0.015 in |
| Angular Misalignment |
1 Degrees |
| Horsepower @ RPM |
17 hp @1,800 RPM, 33 hp @3,600 RPM |
| Horsepower @ 100 RPM |
0.93 hp |
| For Misalignment Type |
Angular, Parallel |
| Maximum Speed |
6,000 RPM |
| Minimum Operating Temperature |
-30 Degrees F |
| System of Measurement |
Inch |
| Torsional Stiffness |
1,718 in-lb/rad |
| Resistance Properties |
Chemical Resistant, Oil Resistant |
