| Item |

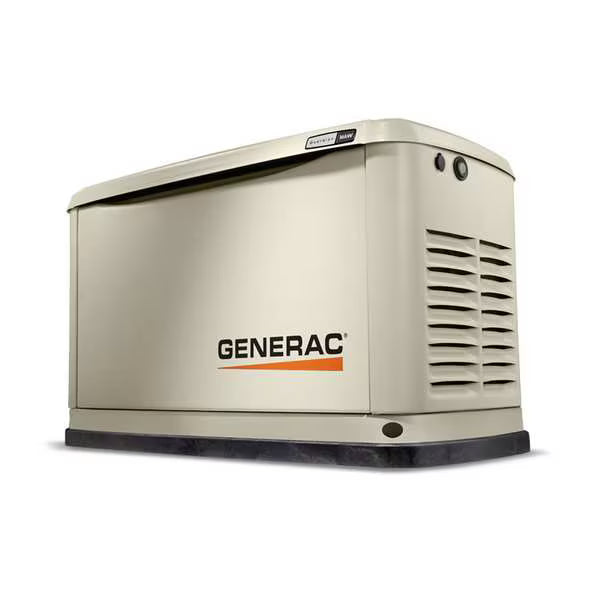

Standby Generator |
| Fuel Type |
Natural Gas/Propane |
| Generator Fuel Type |
Liquid Propane/Natural Gas |
| Phase |
Single |
| Transfer Switch Included |
No |
| Amps |
LP 75/NG 70.8 |
| Rated Voltage |
240V AC |
| Generator Voltage |
120V AC/240V AC |
| Engine Cooling |
Air |
| Standby Power Rating |
18kW LP/17kW NG |
| Carbon Monoxide (CO) Sensor |
No |
| CARB Compliant |
Yes |
| kVA Rating |
18 kVA |
| Engine RPM |
3,600 RPM |
| Battery Included |
No |
| Min. Gas Pressure @ Generator (In WC) |
10 to 12 wc LP; 3.5 to 5 wc in NG |
| Low Coolant Level Alarm |
No |
| Generator Mfr. Warranty Details |
5 yr Limited |
| Standards |
UL 142/ULC SG01, UL/CUL 2200 |
| Main Circuit Breaker |
Yes |
| Battery Requirements |
26R, 540 CCA, 35AGM, 650 CCA |
| Power Factor |
1 |
| Run Time Hour Meter |
Yes |
| Enclosure Material |
Aluminum |
| Automatic Volts Regulation |
Yes |
| 12VDC Battery Charger |
Yes |
| Engine Block Heater |
Not Available |
| LP Consumption @ Half Load |
62 cfh |
| Hz |
60 Hz |
| Low Oil Pressure Alarm |
Yes |
| NG Consumption @ Half Load |
169 cu ft/hr |
| Sound Level dBA |
65 dBA |
| Fault Indicator Lights |
Yes |
| Over Crank Protection |
Yes |
| High Temp. Alarm |
Yes |
| Frame Material |
Aluminum |
| Color |
Bisque |
| Rated Watts |
16000 |
| Weight |
420 lbs |
| Minimum Fuel Pressure - Propane (LPG) |
10 in wc |
| Starter Type |
12V DC |
| Transfer Switch Coverage |
Whole House |
| Maximum Fuel Pressure - Propane (LPG) |
12 in wc |
| Wi-Fi Equipped |
Yes |
| Noise Level |
65 dBA |
| Safety Features |
Automatic Voltage Regulator (AVR), Fault Indicator Lights, High Temperature Alarm, Low Oil Warning, Overcrank Protection, Run Time Hour Meter |
| Engine Speed |
3,600 RPM |
| Apparent Power Rating |
18 kVA |
| Running Wattage - Natural Gas (NG) |
17 kW |
| Propane (LPG) Consumption @ 1/2 Load |
62 cfh |
| Minimum Fuel Pressure - Natural Gas (NG) |
3.5 in wc |
| Rated Frequency |
60 Hz |
| 12V DC Battery Charger |
Yes |
| Natural Gas (NG) Consumption @ Full Load |
247 cfh |
| Manufacturer Warranty |
5 yr |
| Carbon Monoxide Protection |
No Carbon Monoxide Detection |
| Engine Brand |
Generac |
| Battery CCA Rating |
540/650 CCA |
| Rated Current @ 240V AC - Propane (LPG) |
75 A |
| Running Wattage - Propane (LPG) |
18 kW |
| Rated Current @ 240V AC - Natural Gas (NG) |
70.8 A |
| Includes Battery |
No |
| Maximum Fuel Pressure - Natural Gas (NG) |
5 in wc |
| Battery Group Number |
Group 26R |
| Propane (LPG) Consumption @ Full Load |
110 cfh |
| Natural Gas (NG) Consumption @ 1/2 Load |
169 cfh |
| Service Rated Transfer Switch |
No |
