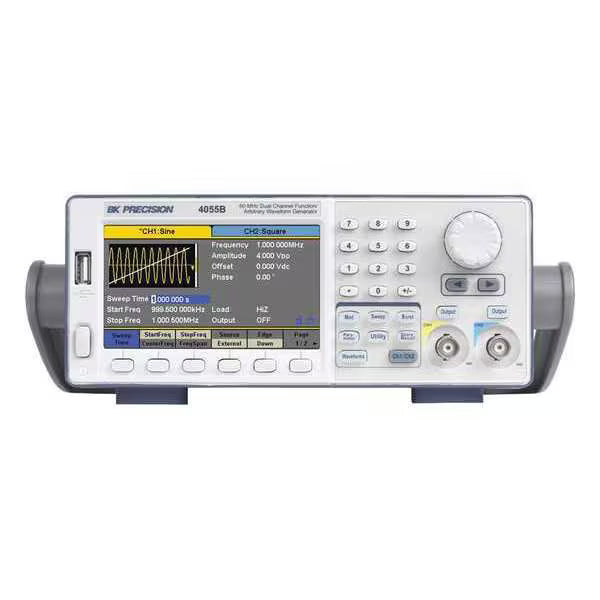

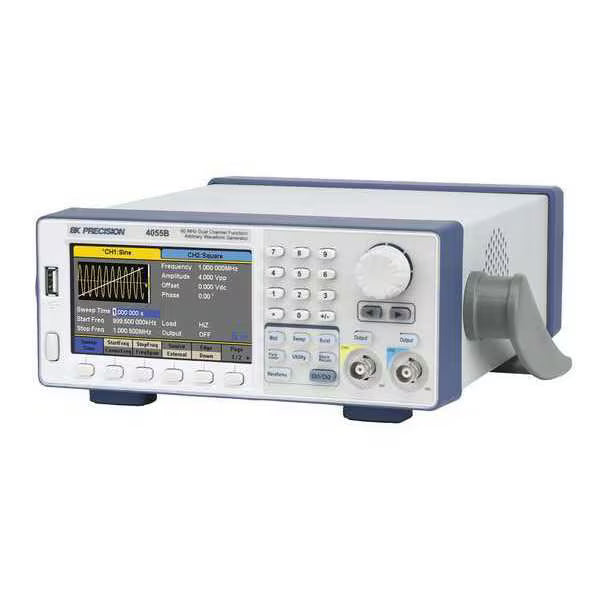

| Item |
Signal Generator |
| Type |
Function/Arbitrary Waveform |
| Sine Wave Range |
1 uHz to 10 MHz |
| Square Wave Range |
1 uHz to 10 MHz |
| Other Waveform Range |
Arbitrary 1 uHz to 12.5 MHz, Pulse 1 uHz - 12 MHz, Triangle Ramp 1 uHz to 500 kHz |
| Sine Wave Distortion |
DC - 10 MHz Less Than -60 dBc |
| Sq. Wave Rise/Fall Time (nS) |
Less Than 12 ns (10%-90%) At Full Amplitude Into 50 ohm |
| Sine/Square Wave Accuracy |
+/-25 PPM (1 yr) |
| Square Wave Range (MHz) |
1 uHz to 10 MHz |
| Sweep Rate |
1 msec to 500 sec |
| AM Modulation |
Internal/External |
| Sine Wave Range (MHz) |
1 uHz to 10 MHz |
| Sweep |
Linear and Logarithmic, Up or Down |
| Impedance (Ohms) |
50 ohm |
| Power Source |
AC Line Input (115/230 V AC, 50/60 Hz) |
| Sweep Range |
Waveform Range Dependent |

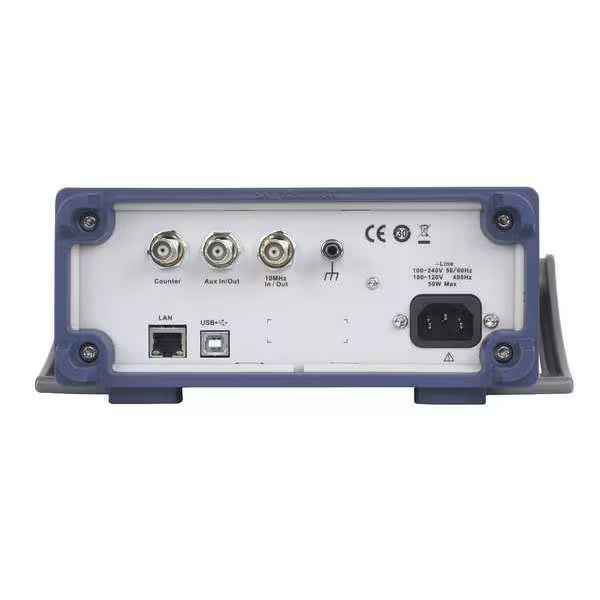

| Interface |
GPIB (Optional), LAN, USB Host Port, USBTMC (Standard) |
| Display |
4.5 in Color LCD |
| Sweep Type |
Continuous, Gate or Burst, Triggered |
| Includes |
Power Cord, USB Type A to Type B Cable |
| Other Types of Modulation |
AM, ASK, DSB-AM, FM, FSK, PM, PSK, PWM |
| Output Amplitude |
2 mVpp to 10 Vpp into 50 ohm (4 mVpp to 20 Vpp into Open Circuit) Less Than or Equal To 10 MHz, 2 mVpp to 5 Vpp into 50 ohm (4 mVpp to 10 Vpp into Open Circuit) Greater Than10 MHz |
| Frequency Dial Accuracy (%) |
0-100 |
| FM Modulation |
Internal/External |
| Output Attenuation |
+/-0.3 dB (DC to 10 MHz), +/-0.5 dB ( Greater Than10 MHz to Max.) |
| Product Type |
Function/Arbitrary Waveform Generator |
| Sine Wave Frequency - Minimum |
1 uHz |
| Triangle Wave Frequency - Maximum |
500 kHz |
| Arbitrary Wave Frequency - Maximum |
10 MHz |
| Sweep Time - Minimum |
1 msec |
| Number of Display Digits |
4 |
| Calibration Certificate Type |
NIST |
| Standards |
NSF-ISR |
| Square Wave Frequency - Minimum |
1 uHz |
| Square Wave Rise/Fall Time |
Less Than 4 nsec (10%-90%) at Full Amplitude Into 50 ohm |
| Sweep Time - Maximum |
500 sec |
| Wave Frequency Accuracy |
+/-25 PPM (1 yr.) |
| Square Wave Frequency - Maximum |
10 MHz |
| Number of Channels |
2 |
| Single Pulse Wave Frequency - Minimum |
1 uHz |
| Single Pulse Wave Frequency - Maximum |
12.5 MHz |
| Waveforms Generated |
Arbitrary, Pulse, Sine, Square, Triangle |
| Triangle Wave Frequency - Minimum |
1 uHz |
| Sine Wave Frequency - Maximum |
10 MHz |
| Arbitrary Wave Frequency - Minimum |
1 uHz |
| Sine Wave Harmonic Distortion |
Less Than 0.15% @ 10 Hz to 20 kHz at 0 dBm |
| Digital Display Screen Type |
LCD |
