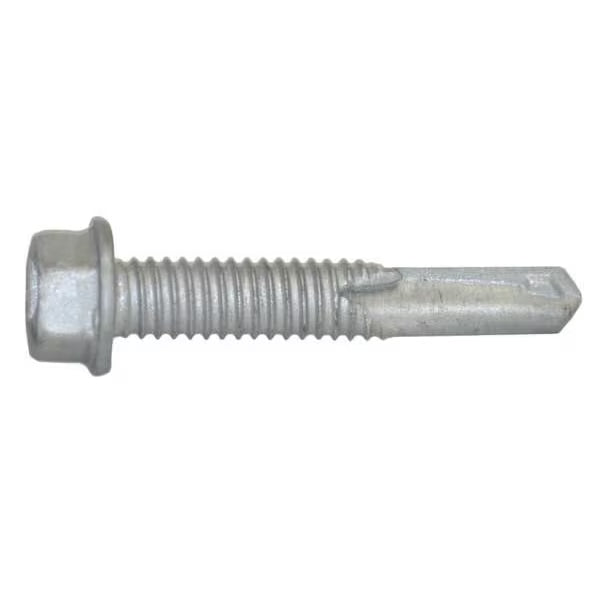

Self-Drilling Screw, #12 x 1-1/4 in, Climaseal Steel Flange Hex Head External Hex Drive, 500 PK
Description
Self-Drilling Screw, Finish Climaseal(TM), Material Steel, Head Type Hex Washer, Drive Internal Hex, Screw Size #12, Fastener Length 1 1/4 in, Drill Point Size 4.5, Drill Tip Length 21/32 in, Maximum Drilling Thickness 0.375 in, Head Width 0.313 in, Head Height 0.193 in, Washer Outside Diameter 0.415 in, Drive Size 5/16 in, Pack Size Small, System of Measurement Inch, Maximum Head Width 5/16 in, Minimum Head Width Not Applicable, Maximum Head Height 3/16 in, Minimum Head Height Not Applicable

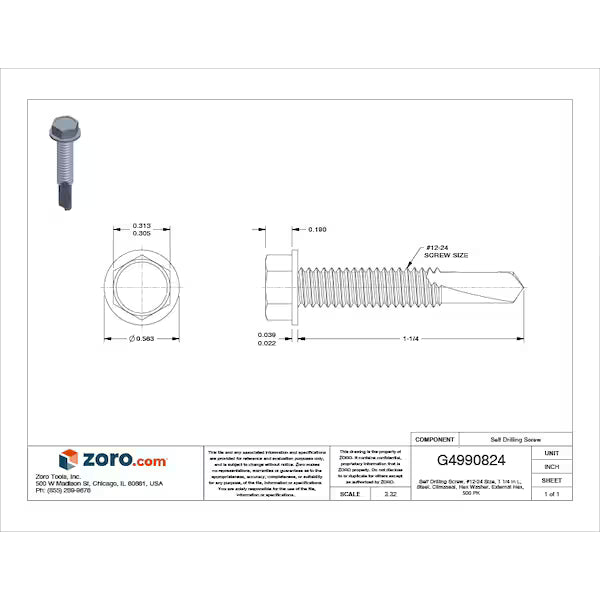

Dimensions
Screw Size | #12 |
Fastener Length | 1-1/4 in |
Drive Size | 5/16 in |
Drill Point Size | 4.5 |
Hex Width | 0.313 in |
Head Dia. | 5/16 in |
Head Height | 0.193 in |
Washer Outside Diameter | 0.415 in |
Drill Tip Length | 21/32 in |
Overall Length | 1 1/4 in |
Maximum Head Width | 5/16 in |
Maximum Drilling Thickness | 0.375 in |
Head Width | 0.313 in |
Maximum Head Height | 3/16 in |

Self-Drilling Screw, #12 x 1-1/4 in, Climaseal Steel Flange Hex Head External Hex Drive, 500 PK
$191.99
