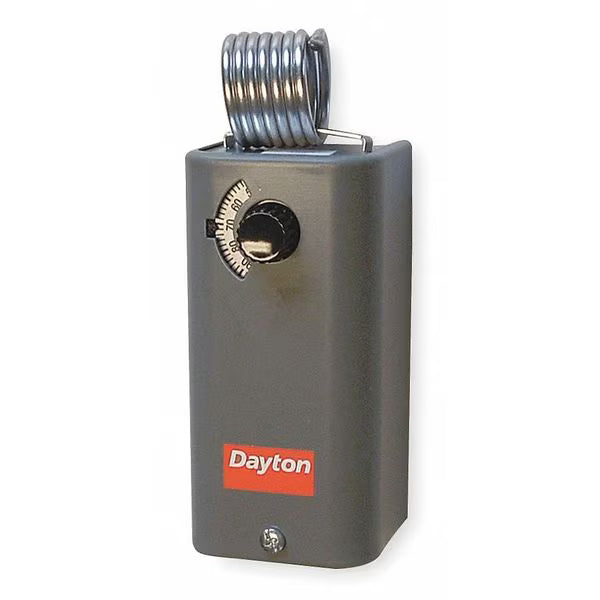

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 30 Degrees to 110 Degrees F, Thermostat Voltage 24 to 600VAC, Full Load Amps @ 120VAC 16A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 1, Differential 3.5 Degrees F, Height 5-3/4 In.
| Width |
2 1/4 in |
| Height |
5 3/4 in |
| Depth |
2 1/4 in |
| Sensor Length |
36 in |
| Overall Depth |
2 1/8 in |
| Sensor Diameter |
1/8 in |
| Overall Height |
5 11/16 in |
| Overall Width |
2 1/8 in |
| Switch Action |
Open/Close on Rise |
| Voltage |
24 to 600V AC |
| Sensor Type |
Hydraulic Air Coil |
| Differential |
3.5 Degrees F |
| Display Type |
Analog |
| Thermostat Control Range |
30 Degrees to 110 Degrees F |
| Mounting Location |
Vertical Box |
| Switch Type |
SPDT |
| Color |
Gray |
| Contact Rating Resistive @ 120V |
22 A |
| Pilot Duty Contacts (VA) |
125 VA |
| Number of Switches |
1 |
| Thermostat Item |
Line Voltage Mechanical Thermostat |
| Temp. Sensitivity |
3 Degrees |
| Inductive Amps @ 240V |
8 A |
| Standards |
CUL Listed, UL Listed |
| Control Range |
30 Degrees to 110 Degrees F |
| Remote Sensing Capability |
No |
| Contact Rating Resistive @ 240V |
22 A |
| Locked Rotor Amps @ 240V |
48 A |
| Thermostat Programmable |
No |
| Thermostat Heating/Cooling |
Heating/Cooling |
| Thermostat Switch Type |
SPDT |
| Thermostat Voltage |
24 to 600V AC |
| Enclosure Type |
Standard Enclosure |
| Inductive Amps @ 120V |
16 A |
| Locked Rotor Amps @ 120V |
96 A |
| Item |
Line Volt Mechanical Tstat |
| Remote Sensing Bulb Included |
No |
| Full Load Amps @ 120VAC |
16 A |
| Full Load Amps @ 240VAC |
8 A |
| Includes |
Mounting Plate, Screws |
| Application |
Heat or Cool |
| Thermostat Type |
Line Voltage |
| Contact Rating Resistive @ 277V |
22 A |
| Inductive Amps @ 208V |
9.2 A |
| Phase |
1 |
| Control Type |
Exposed Dial |
| Dehumidification Control |
No |
| Temperature Limiting |
No |
| Pilot Duty Rating |
125VA @ 24 to 600V AC |
| Number of Cooling Stages |
1 |
| For Washdown Environment |
No |
| Programming Capability |
Not Programmable |
| Temperature Sensitivity |
+/-3 Degrees F |
| Enclosure Material |
Steel |
| Maximum Control Temperature |
110 Degrees F |
| Compatible System Type |
Fan Coil Units |
| Enclosure Finish |
Polished |
| Minimum Operating Temperature |
30 Degrees F |
| Contact Type |
Snap Action |
| Number of Poles |
1 |
| Sensor Location |
Built-In |
| Operating Temperature Range |
30 Degrees to 110 Degrees F |
| Resistive Amps @ 208V AC |
22 A |
| Stages |
1H/1C |
| Minimum Control Temperature |
30 Degrees F |
| Shape |
Rectangle |
| Temperature Differential |
3.5 Degrees F |
| Enclosure NEMA Rating |
1 |
| Maximum Operating Temperature |
110 Degrees F |
| Temperature settings per day |
Manual Adjust |
| Temperature Control Range |
30 Degrees to 110 Degrees F |
| Differential Type |
Fixed |
| Number of Heating Stages |
1 |
| Changeover Type |
Automatic |
| Temperature Scale |
Fahrenheit |
| Mounting Direction |
Vertical |
| Enclosure Color |
Gray |
| Frequency |
50 Hz, 60 Hz |
