Description

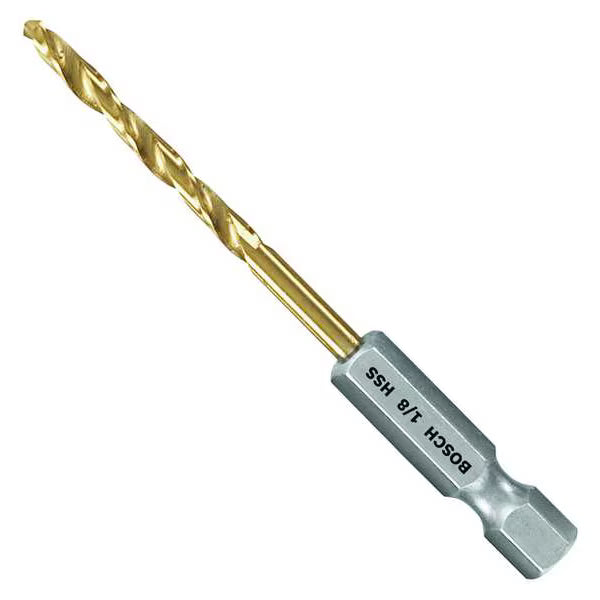

Hex Shank Drill Bit, 1/8 in, Drill Bit Point Angle 135 Degrees , Drill Bit Point Type Split Point, High Speed Steel, Titanium
Dimensions
| Overall Length | 2 3/4 in |
| Drill Bit Size | 1/8 in |
| Shank Hex Size | 1/4 in |
| Flute Length | 1 3/4 in |
| Drilling Depth | 1-1/2" |
| Shank Dia. | 1/4" |
| Depth:Dia. Ratio | 14xD |
| Maximum Drilling Depth | 1 3/4 in |
Details
| Item | Hex Shank Drill Bit |
| Shank Type - Machining | 1/4 in |
| Material - Machining | High Speed Steel |
| Finish - Machining | Titanium |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.125 |
| Impact Rated | Yes |
| Features | 135 Degrees |
| Drill Bit Point Angle | 135 Degrees |
| Primary Material Application ISO Code | O |
| Drill Bit Point Type | Split Point |
| Measurement System | Fractional Inch |
| Impact Rating | Yes |
| Primary Material Application | Hard Wood, Steel |
| Flute Type | Spiral |
| Standards | Not Rated |
Impact Drill Bit, 1/8" Size, 2-3/4" L
$1.99
