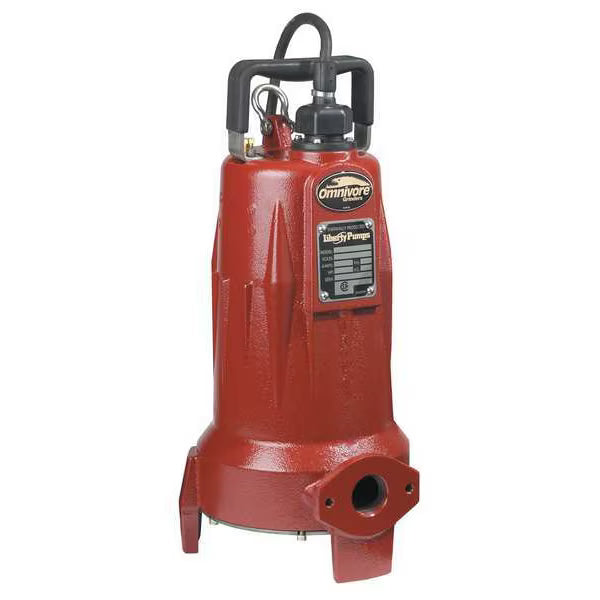

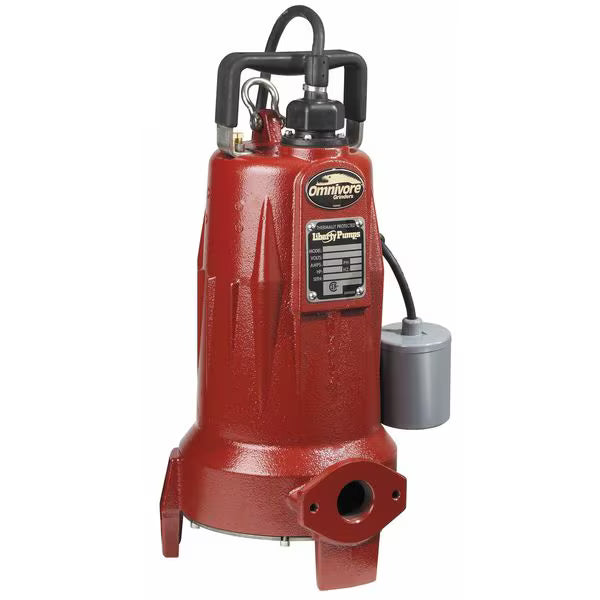

Grinder Pump, 2 HP, 208/230V

Name: Grinder Pump, 2 HP, 208/230V
Brand: Liberty Pumps
SKU: LSG202M
Price: 1881.75 USD
Availability: InStock

$1,881.75

Ask a Question

Vendor: Liberty Pumps

SKU: LSG202M

Availability: In Stock Pre order Out of stock

Categories: Hardware & Building Materials Pumps

Description

Description

The Liberty Pumps LSG202M Grinder Pump is the perfect pump for your home or business. It can be used in any application that requires pumping liquids, including wells, water transfer and more. The cast iron grinder pump has a discharge size of 1 1/4 in. FNPT. Its max liquid temperature is 140 degrees F and overall height is 19 1/2 in.. The pump's max head measures 108 ft., while its flow rate at 10 ft. of head comes to 50 gpm. With a 2 hp HP motor, this unit weighs 184 lb.. Whether you're looking for a powerful grinder pump or one that's designed for home use, the Liberty Pumps LSG202M Grinder Pump will get the job done efficiently and effectively.

Dimensions

Min. Sump Pit Dia.	24 in
Cord Length	10 ft
Cord Length - Pumps	25 ft.
Diameter	9"
Manufacturers Warranty Length	3 yr
Height	19-1/2"
Length	12-1/2" FNPT
Max. Diameter Solids	2 in
Overall Length	12 1/2 in
Body Dia.	9 in
Discharge Dia.	1 1/4 in
Overall Height	19 1/2 in
Discharge Diameter	1 1/4 in
Solids Diameter - Maximum	2 in
Body Diameter	9 in
Sump Pit Diameter - Minimum	24 in

Details

HP	2 hp
Phase - Pumps	1
Switch Actuation	No Switch Included
Body Material	Cast Iron
Base Material	Cast Iron
Flow Rate @ 10 Ft. of Head	50 gpm
Max. Head	108 ft
Impeller Material	Stainless Steel
Discharge NPT	1-1/4" F
Bearing Type	Ball
GPM of Water @ 100 Ft. of Head	9
GPM of Water @ 10 Ft. of Head	50
Switch Type	No Switch Included
Amps	15 A
GPM of Water @ 30 Ft. of Head	50
Shaft Seal	SIC
Motor RPM	3450
Phase	Single
GPM of Water @ 45 Ft. of Head	48
Voltage - Pumps	208/230VAC
GPM of Water @ 55 Ft. of Head	45
Pump RPM	3450
GPM of Water @ 80 Ft. of Head	27
Max. Head - Pumps	108 ft.
Agency Compliance	C-US, CSA
Includes	Handle, Lifting Shackle, Power Cord
Housing Material	Cast iron
Hz	60
Max. Liquid Temp.	140 Degrees F
Duty	Intermittent
GPM of Water @ 5 Ft. of Head	50
GPM of Water @ 25 Ft. of Head	50
GPM of Water @ 90 Ft. of Head	17
Input Phase AC	1
GPM of Water @ 15 Ft. of Head	50
Item - Grinder Pumps	Grinder Pump
GPM of Water @ 35 Ft. of Head	50
Motor Type	CSCR
Thermal Protection	Yes
Switch Type - Pumps	No Switch Included
Impeller Material - Pumps	Stainless Steel
GPM of Water @ 60 Ft. of Head	42
GPM of Water @ 50 Ft. of Head	47
Shaft Seal Material - Pumps	Silicone Carbide
GPM of Water @ 20 Ft. of Head	50
Pump Body Material	Cast Iron
GPM of Water @ 70 Ft. of Head	36
Item	Grinder Pump
Handle	Yes
GPM of Water @ 40 Ft. of Head	48
Voltage	208/230
Discharge Gender	Female
Discharge	1 1/4 in FNPT
Rated Voltage	208/230V AC
Flow Rate @ 40 Ft. of Head	48 gpm
Flow Rate @ 60 Ft. of Head	42 gpm
Duty Cycle	Intermittent
Switch Electrical Connection	No Switch Included
Discharge Standard	NPT
RPM	3,450 RPM
Flow Rate @ 15 Ft. of Head	50 gpm
Flow Rate @ 20 Ft. of Head	50 gpm
Standards	CSA, CUS
Cord Termination	Plug
Liquid Temperature - Maximum	140 Degrees F
Horsepower	2 hp
Hazardous Location Class	Not Rated
Flow Rate @ 10 ft of Head	50 gpm
Rotation Speed - Maximum	3,450 RPM
Motor Housing Material	Cast Iron
For Media Type	Sewage Water
Shaft Seal Type	Single Mechanical
Shaft Seal Material	Silicon Carbide
Series	LSG
Current	15 A
Discharge Orientation	Horizontal
Frequency	60 Hz
Feet of Head - Maximum	108 ft
Power Source	Corded Electric
Volute Material	Cast Iron
Requires Control Panel	Control Panel Required
