| Item |

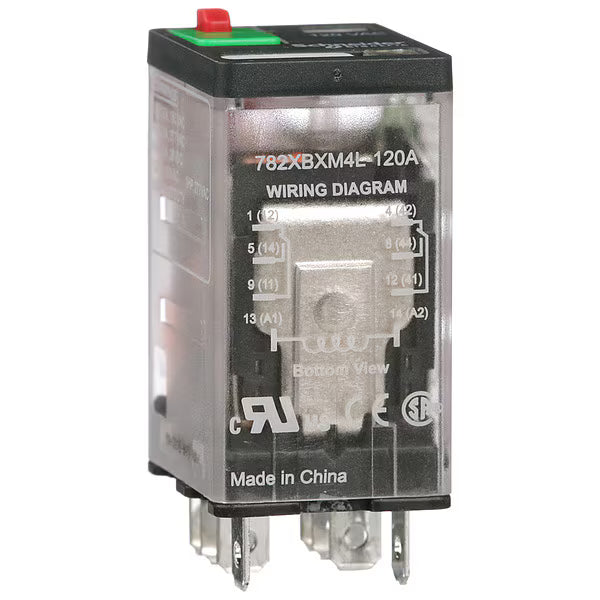

General Purpose Relay |
| Mounting Style |
Socket |
| Electrical Connection |
Faston Terminal |
| Base Shape |
Square |
| Number of Pins |
8 |
| Coil Voltage |
120V AC |
| Current Rating |
15 A |
| Contact Form |
DPDT |
| Contact Rating (AC) |
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC) |
| Contact Rating (DC) |
15 A @ 28V (NO), 7.55 A @ 28V (NC) |
| Socket |
Mfr. No. 70-459-1, 70-782D8-1A |
| Features |
Gold Flashed Contacts, Removable ID Tag |
| Standards |
CE Certified, CSA Certified, UL Listed |
| Status Indicator |
LED Indicator, Mechanical Flag |
| Socket Code |
J |
| Contact Material |
Gold Flashed Silver Alloy |
| Green Environmental Attribute |
RoHS 2011/65/EU Compliant |
| Power Consumption - Relay |
1.2 VA |
| IP Rating |
IP40 |
| Maximum Switching Voltage |
250V AC, 300V DC |
| Series |
782 Series |
| Motor Rated |
Yes |
| Dielectric Strength |
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles |
| Horsepower @ 240V AC |
1 hp |
| Minimum Switching Current |
10 mA |
| For Use With |
Automation Panels and Controls |
| Maximum Operating Temperature |
131 Degrees F |
| Mechanical Operating Durability |
10,000,000 |
| Coil Resistance |
4,430 ohm |
| Operating Current |
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC) |
| Weight |
1.27 oz |
| Resistance Properties |
Shock-Resistant, Vibration-Resistant |
| Response Time |
20 msec |
| Minimum Operating Temperature |
-40 Degrees F |
| Horsepower @ 120V AC |
1/2 hp |
| Input Voltage |
120V AC |
| Power Consumption |
1.15 W, 1.4 VA |
| Push-To-Test Method |
Lockable |
| Electrical Operating Durability |
100,000 |
| Voltage Range |
0.8...1.1 Un AC/DC |
| Power consumption in W |
1.15 W DC |
| Operating Time |
20 ms operating; 20 ms tripping |
| Drop-out Voltage Threshold |
>= 0.15 Uc AC; >= 0.1 Uc DC |
| Connections Terminals |
Faston terminals |
| Product Certifications |
UL; CE; CSA |
| Rated Operational Current |
15 A at 120...277 V AC conforming to UL; 15 A at 28 V DC conforming to UL; 15 A at 120/150 V AC conforming to CSA; 10 A at 151/277 V AC conforming to CSA; 15 A at 28 V DC conforming to CSA; 15 A at 250 V AC (NO) conforming to IEC; 15 A at 28 V DC (NO) conforming to IEC; 7.55 A at 250 V AC (NC) conforming to IEC; 7.55 A at 28 V DC (NC) conforming to IEC |
| Control Type |
Lockable test button |
| Shock Resistance |
15 gn in operation |
| Contact Composition |
2 NO + 2 NC |
| Product Range |
Legacy |
| Vibration Resistance |
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz) |
| Ambient Air Temperature for Storage |
-40 to 185°F (-40 to 85°C) |
| Motor Power HP |
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz |
| Power consumption in VA |
1.4 VA AC |
| Ambient Air Temperature for Operation |
-40 to 131°F (-40 to 55°C) |
