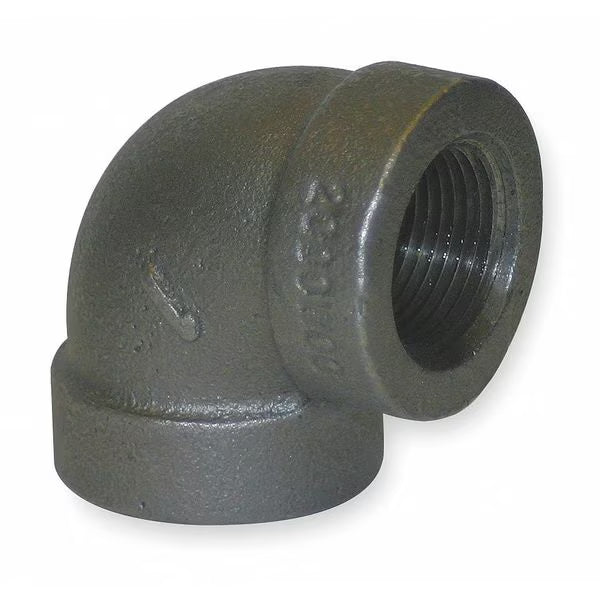

90 Degrees Elbow, Malleable Iron, Class Class 150, 2 in, Female, NPT, 11 1/2, 2 in, Female, NPT, 11 1/2
| Pipe Size (Fittings) |
2" |
| Pipe Size - Pipe Fitting |
2 in |
| Fitting Side B Nominal Pipe Size |
2 in |
| Pipe Size |
2" |
| Fitting Side A Nominal Pipe Size |
2 in |
| Specific Fitting Shape |
90 Degree Elbow |
| Fitting Connection Type |
FNPT |
| Pipe Fitting Material |
Malleable Iron |
| Class |
Class 150 |
| Item |
90 Degree Elbow |
| Standards |
ASTM A-197, ASTM A47, ASME B16.3 and B16.4, UL Listed, FM Approved |
| Basic Pipe Fitting Material |
Metal |
| Basic Pipe Fitting Shape |
Elbow |
| Pipe Fitting Schedule/Class |
Class 150 |
| Fitting Schedule/Class |
Class 150 |
| Max. Pressure |
300 psi@150 Degrees F |
| Temp. Range |
-20 Degrees to 366 Degrees F |
| Saturated Steam Pressure |
150 PSI |
| Specific Pipe Fitting Shape |
90 Degree Elbow |
| Fitting Side A Gender |
Female |
| Includes Pre-Applied Thread Sealant |
No |
| Fitting Side A Type |
NPT |
| Includes Seal |
No |
| Fitting Side B Gender |
Female |
| Fitting Side B Type |
NPT |
| Fitting Side A Pipe Threading |
11 1/2 |
| Fitting Side B Pipe Threading |
11 1/2 |
| Color |
Black |
