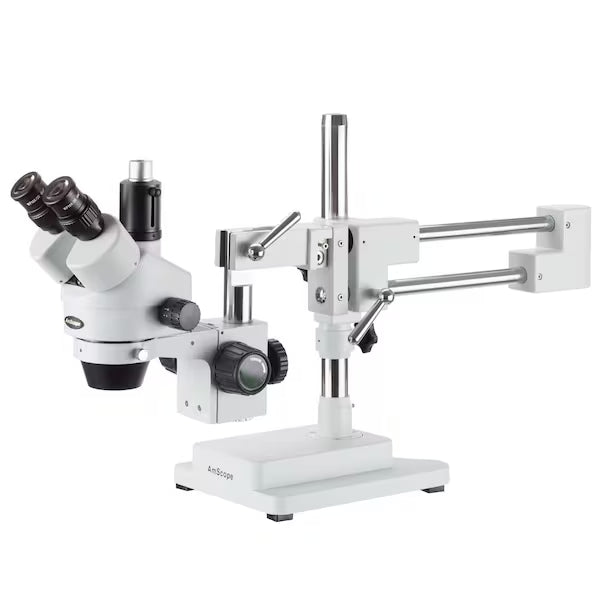

The SM-4TP is a heavy-duty, highly-flexible microscope designed for biological & industrial applications. This model is especially popular in the QC, repair & engraving industries thanks to its ease-of-use & reliability. with its wide zoom range & double-arm boom-stand, this model will become an indispensable instrument in any workshop or lab. The trinocular photo-port is Simul-Focal, so it can be used simultaneously with both eyepieces.
Optics:
The stereo optics provide clear, sharp images with excellent focus-depth & a large working-distance. with 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles. 0.5X & 2X Barlow lenses are included, which can be alternated to either halve or double the magnification range, expanding the possible magnifications to 3.5X-90X.
Packing List:
- One trinocular stereo microscope head
- One photo port attachment
- 10X eyepiece(s)
- One 0.5X Barlow lens
- One 2X Barlow lens
- One pair eye-guards
- One double-arm boom-stand with focusing rack
- One LED Ring Light
- One power controller
- One power cable
- One Ring Light mounting adapter
- 3.5X-90X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 0.5X and 2X Barlow lenses.
- The microscope provides up to 6.5" (165mm) of working distance.
- A highly-versatile stereo microscope on a heavy-duty, multi-pivot boom-stand which allows the microscope to easily swing into place when needed, and away when not.
- Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.
- The stereo optics provide upright images with clear depth-of-field and a wide view for hands-on applications.
- The simul-focal trinocular photo-port provides a dedicated mount for a camera, and can be used simultaneously with both eyepieces.
- This microscope is ideal for laboratories, repair shops, and engravers.
Dimensions
Width 20 Height 21 Length 22 Details
Item Trinocular Stereo Microscope Includes Microscope, Power Cord, User Manual Light Source LED Power Supply 110V Magnification - Eyepiece Lens 10X Head Type Trinocular Magnification - Objective Lens 0.7-4.5X Magnification Range 3.5X-90X
